Made in USA
| Printer Name | CYLINDRICAL UV PRINTER |
|---|---|
| Model | STS C-3 |
| Printing Resolution | 720 dpi – 2880 dpi |
| Number Of Print Head | 3PCS |
| Print Head | Epson i1600 |
| Ink Mode | CMYK+W+V |
| Print Size | 0 – 240mm | 0 – 9.44″ Length, 55-180mm | 2.16″ – 7.08″ Diameter, 12° Taper |
| Ink System | Siphon positive pressure ink supply system |
| Ink Type | Eco UV Curing ink |
| File Format | TIFF, JPEG, ESP, PDF, etc |
| RIP Software | IneditTM neoStampa / CADlinkTM Digital Factory 11 / FlexiPRINT |
|---|---|
| Voltage | AC110V+/-10% |
| Interface Type | High-speed 3.0 USB cable |
| Operating Environments | Temperature: 15°C-30°C | 57F° – 86°F Humidity: 30%RH – 70%RH |
| Platform Jig | Special printing fixture |
| Dimensions of Printer(LxWxH) | 1340mm * 480mm * 730mm | 52.7″ * 18.9″ * 28.74″ | (LxW.H) |
| Rated Power | 1300W |
| Curing System | LED UV curing system |
| Machine Weight | 134KG | 44.11b |

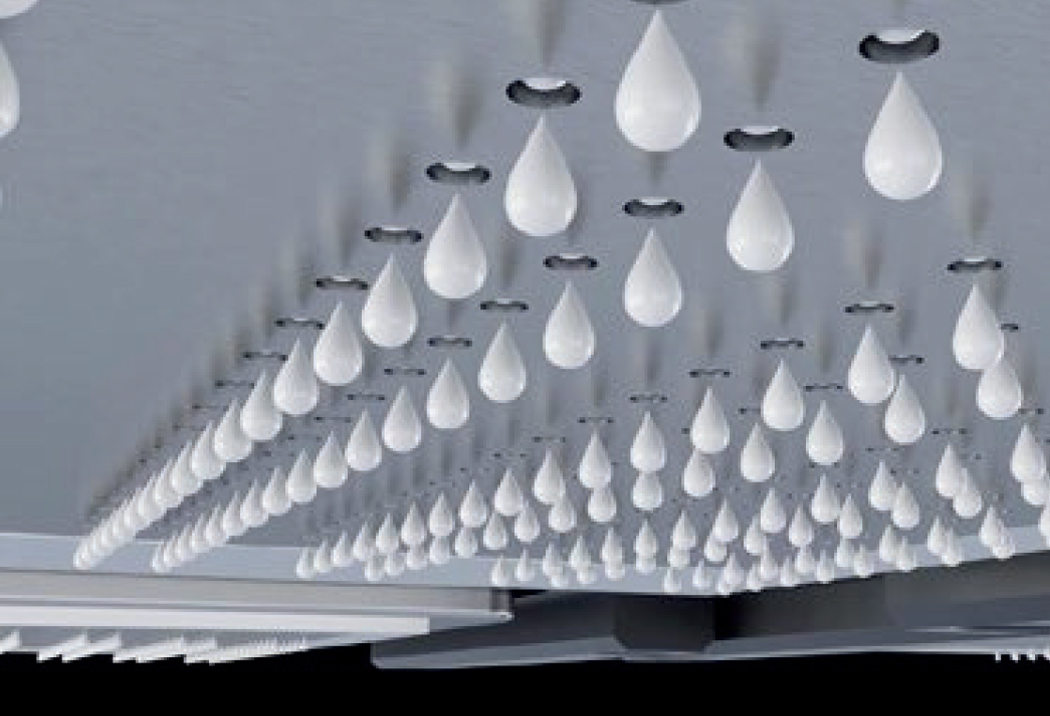

Variable Ink Drop Technology
Variable Ink Drop Technology controls the voltage that powers the printhead components so that the same nozzle can drop ink down in various sizes as needed which produces high quality images at high speed with vibrancy and smooth gradations.
Automatic Bottle Adjustment
The built-in sensors detect the varying sizes of each bottle and automatically adjust the settings to ensure precise printing, eliminating the need for manual adjustments.

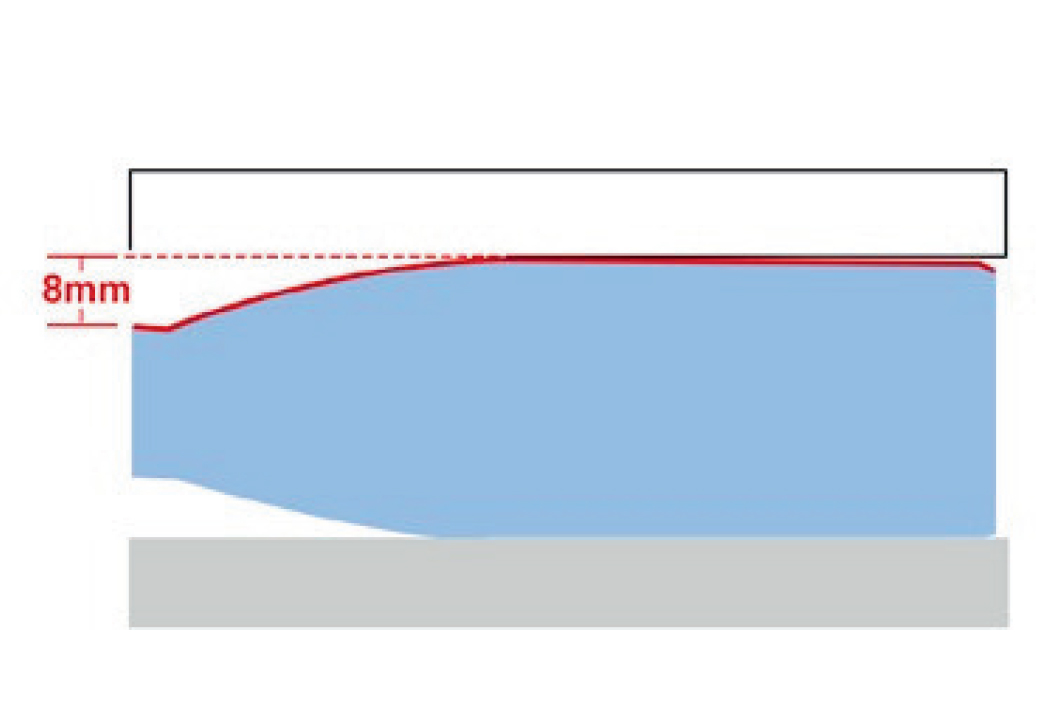

Powerful High-Drop Printing
Supports 8mm high-drop printing, with automatic laser measurement of product shape for precise positioning. Enables seamless and accurate printing on irregularly shaped products.
Various Print Sizes
The system supports a printing length from 0 to 9.4 inches and a printing diameter from 2.1 to 7 inches, enabling compatibility with a wide variety of products, such as thermos cups, cylindrical electronic devices, and wine bottles. This versatile solution offers extensive application across multiple industries.
Strong Adhesion Capabilities
Compatible with a wide range of printing materials, whether conical or cylindrical, transparent or opaque. It ensures flawless printing on glassware, water bottles, candles, golf balls, baseballs, food cans, and other objects, delivering excellent adhesion for long-lasting results.
