Made in USA
| Model | STS UV-2436V |
|---|---|
| Print Format | 600*900 mm | 23.6*35.4 inches |
| Print Head | EPSON 1600-U1*3 |
| Ink Type | ECO-UV Curing Ink |
| Print Method | C M Y K + W + Varnish |
| Print Direction | Bi-Direction |
| Print Thickness | 0-180mm Print Height |
| Max Print Resolution | 720*1200dpi | 720*2400dpi |
| Print Mode | CMYK+W / CMYK+W+V |
| Cylinder Print | Optional |
| High Drop Printing | Up to 9mm |
| Software | IneditTM neoStampa / CADlinkTM Digital Factory 11 / FlexiPRINT |
|---|---|
| Power Voltage | AC 100-220V ± 10%, 50/60Hz ± 1Hz |
| File Format | PDF, JPG, PNG, EPS, AI, PSD, TIFF |
| Working Environment | Temperature: 67-79 F Humidity: 35% – 65% |
| Net Weight | 194 KG | 427.697 lb |
| Printer Size | 1696mm * 1595mm * 719mm / 66.7in * 62.7in * 28.3in | (LxWxH) |
| Packaging Size | 1830mm * 1750mm * 1200mm / 72in * 68.8in * 47.2in | (LxWxH) |
| Applications | PVC, PET Film, Acrylic, Wood, Glass, Ceramic, Leather, Plastic, Metal, etc… |
| Included Accessories | Power Card, Network cable, RIP and Management print software (IneditTM neoStampa / CADlinkTM Digital Factory 11), instruction manual, etc… |

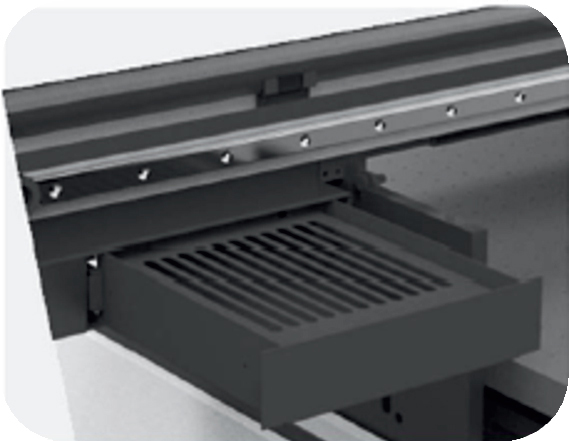

Print Completion Process
Following the completion of printing production, you have two options: Place the printer in a flushing state. The printer will automatically flush every few minutes using ink. This prevents ink from solidifying in the ink train which will lead to clogging of the nozzles. The other option, at the end of the day, you can perform a print head clean and retire the printer for the next shift.
High Procession Vacuum Table
The adsorption platform is made of high-strength aluminum alloy plate. The high-precision drilling machine is used to drill holes on the plate. The turbo fan under the platform inhales through these holes to fix the material.

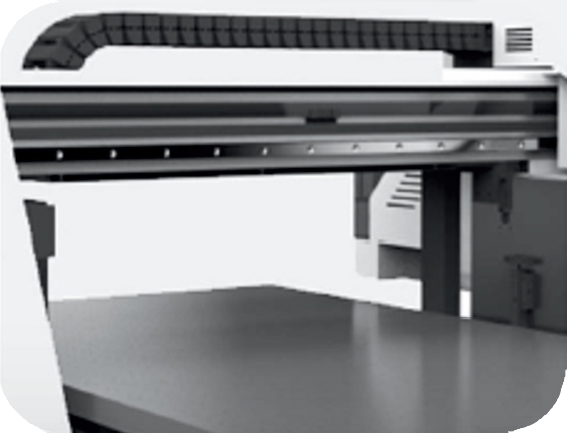

Print Range Height
The printing carriage bar can be raised to am maximum height of 7″ which will accommodate most of materials used for printing to a thickness of 0-7″.

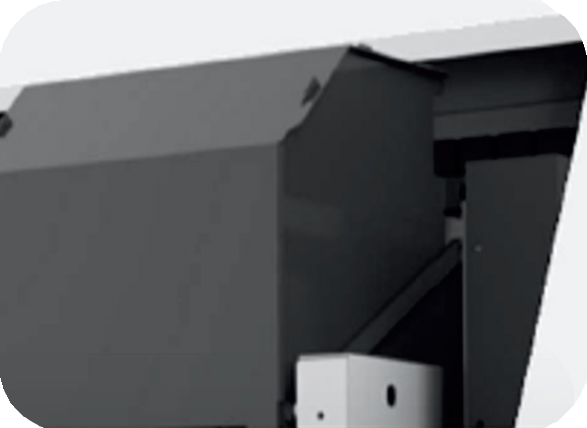

High Reliability Safety Features
The printer has sensors to detect head strikes or an object being in the path of the print head to prevent damage to the head.
